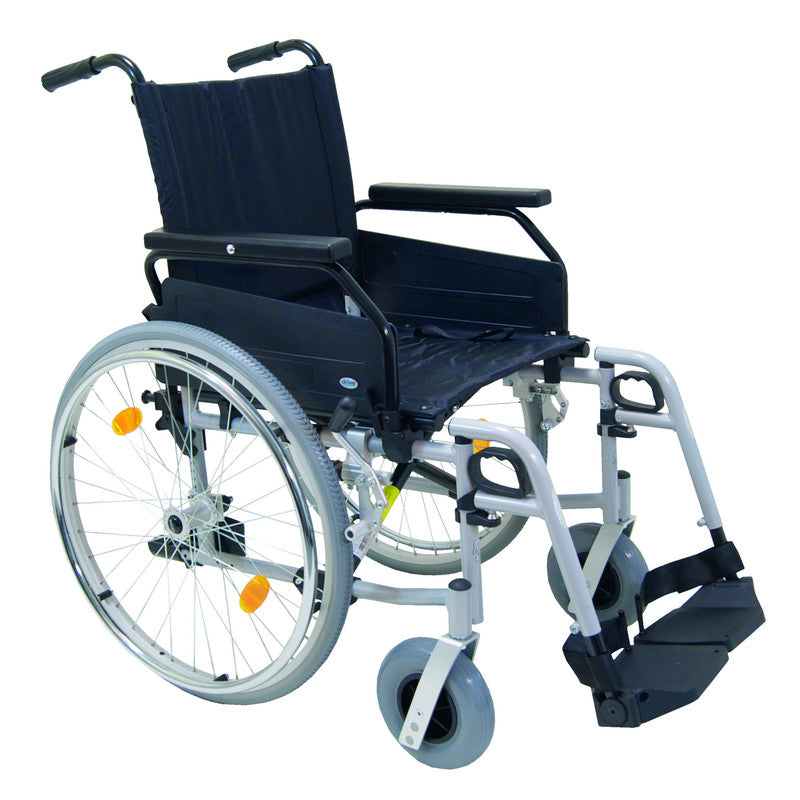

Standard Wheelchair Rotec (without drumbrake)

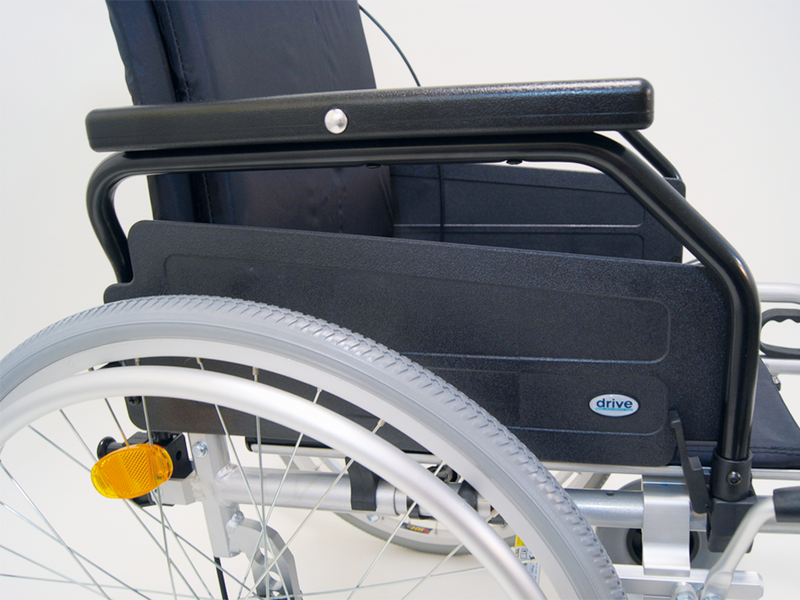

• Simple adjustment from short to long armrests
• Continuous adjustment of leg length (39 - 48 cm)
• Footrests adjustable in five steps
• Wheelbase extension possible
• Back cover height-adjustable for optimal sitting position
• Available in eight seat widths

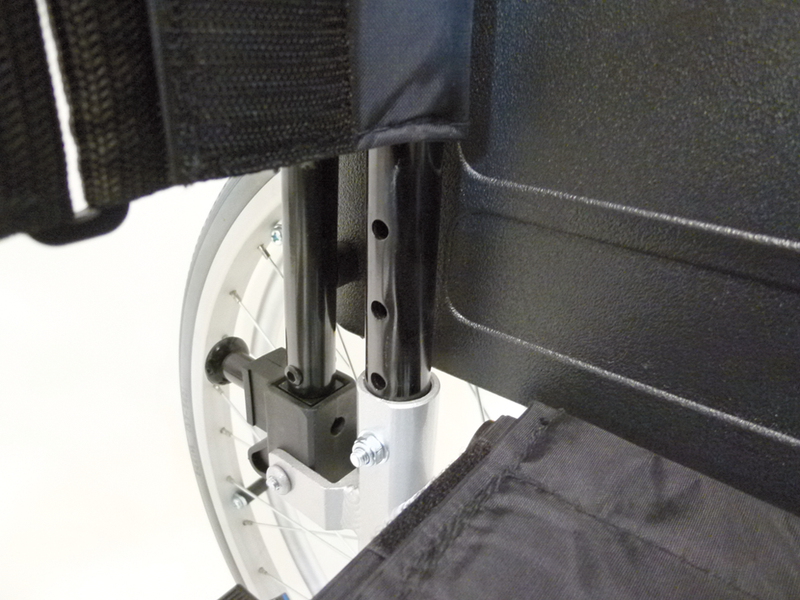

• Handle height adjustable in four steps from 94 to 101.5 cm

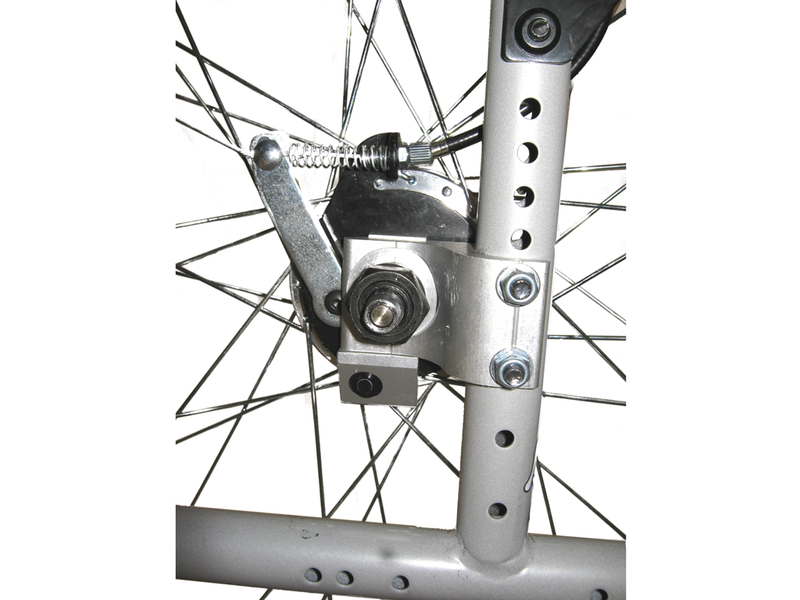

• Seat height adjustment from 51 cm to 56 cm possible in three steps
• Powder-coated surfaces
• Chromed hand rims and leg supports
• Removable and swiveling leg supports
• Aluminum footrests with heel straps can be folded up
• 200 x 50 mm PU steering wheels and 24" x 1 3/8" full-rubber drive wheels
• Extra-reinforced front wheel forks
• Reinforced 24" drive wheels
• Quick-release axles as standard for fast wheel installation or removal
• Optionally available with drum brake for escort
• Crash test according to ISO 7176-19: approved for passenger transport in vehicles in combination with all approved passenger and wheelchair restraint systems
• The Rotec with common part principle: gain flexibility and reduce your stock level – with the common part principle: many Rotec replacement parts and accessories are compatible with all Litec 2G, Litec 2G Plus, Freetec, Ecotec 2G, and Multitec wheelchairs

Technical Data
